BOUTIQUE LAYOUT PLANNER
Retail boutique floor plan maker, rack by rack.
Lay out a boutique or any retail store floor plan: racks, wall runs, the cash wrap and fitting rooms in 2D, aisles and counters checked against published figures, then the shop floor in 3D.
No sign-up needed to try. Desktop recommended for the editor.
AISLES AND COUNTERS
How wide should store aisles be, and how high the counter?
The 2010 ADA Standards give the width of an accessible route, the height of a usable counter part and the fitting room's turning space; the building code's occupant load factor sizes the exits. [1, 2]
| Figure | Value | What it is for | Source |
|---|---|---|---|
| Accessible route | 36 in (915 mm) | Clear width of a walking route between fixtures | 2010 ADA Standards §403.5.1 [1] |
| Sales counter part | 36 in (915 mm) high at most | At least 36 in long for a side approach, or 30 in long with knee space | 2010 ADA Standards §904.4.1-904.4.2 [1] |
| Check-out aisle counter | 38 in (965 mm) high at most | Counter surface at an accessible check-out aisle | 2010 ADA Standards §904.3.2 [1] |
| Fitting room | 60 in (1,525 mm) turning space | Inside an accessible fitting room, with a bench | 2010 ADA Standards §803 [1] |
| Fitting room bench | 42 × 20 to 24 in | Seat 17 to 19 in (430 to 485 mm) high | 2010 ADA Standards §903 [1] |
| Occupant load factor | 60 ft² gross | Sales floor, for sizing exits; stock and storage rooms 300 ft² gross | IBC Table 1004.5, as adopted in Illinois [2] |
The ADA Standards apply across the US; your adopted building and fire codes set exit and aisle rules, which can ask for more than 36 in.
These figures are published guidance for an early layout, and they differ from place to place. FloorPlanCraft does not certify a plan as safe, accessible, licensable or code-compliant; confirm sizes, exits and accessibility with your local authority and qualified professionals.
ROOMS AND ITEMS
What the boutique template includes

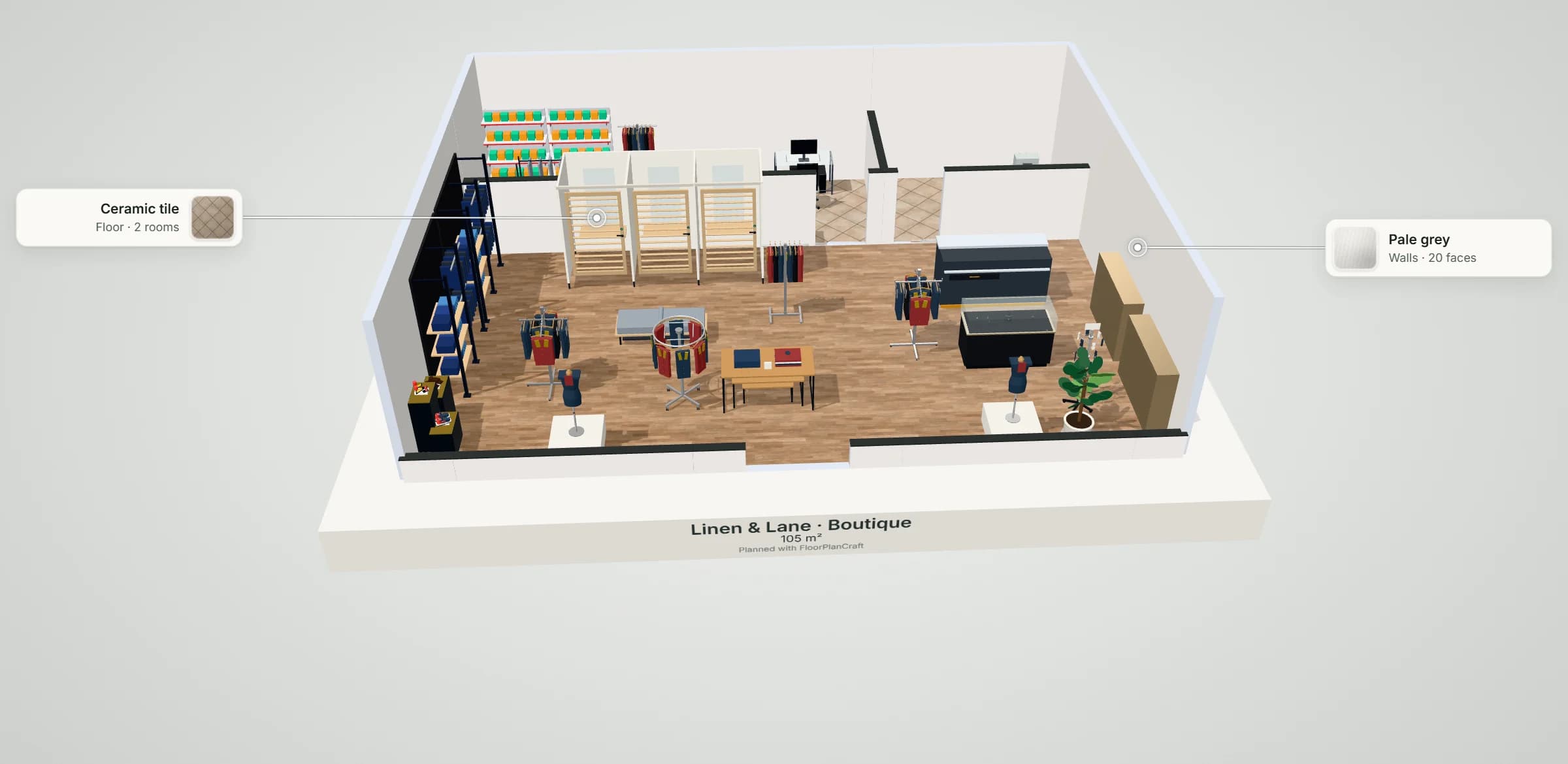

Linen & Lane is a 12 × 9 m plan: a sales floor with display windows either side of the entrance, a stockroom with the back office, and a staff washroom. A 1.2 m walkway runs from the entrance to both back doors. Item sizes are the planner's concept models, not a particular maker's products; check yours with the supplier.
| Room | Width × depth | Area |
|---|---|---|
| Sales floor | 12 × 6.4 m | 76.8 m² (827 ft²) |
| Stockroom & office | 8 × 2.6 m | 20.8 m² (224 ft²) |
| Staff washroom | 4 × 2.6 m | 10.4 m² (112 ft²) |
Measured on the plan's wall lines, as the planner reports room areas; a room that is not a rectangle gives its outer width and depth.
| Catalog item | Width × depth | In template | How the template uses it |
|---|---|---|---|
| Checkout & Cash-Wraps · Luxury 2-Tier Boutique Cash Wrap — Retail | 2,000 × 850 mm | 1 | The cash wrap, facing the floor |
| Fitting Rooms · 3-Cabin Inline Changing Bank — Retail | 3,650 × 1,300 mm | 1 | Three fitting cabins on the back wall |
| Fitting Rooms · Fitting Lounge Waiting Bench — Retail | 1,600 × 600 mm | 1 | A bench facing the cabins, 1.2 m away |
| Apparel Displays · Architectural Plinth with Dress Form — Retail | 800 × 800 mm | 2 | A dress form in each display window |
| Apparel Displays · 4-Way Telescoping Garment Rack — Retail | 840 × 840 mm | 2 | Racks in the middle of the floor |
| Apparel Displays · 36" Revolving Round Rack with Brakes — Retail | 916 × 916 mm | 1 | A round rack near the entrance |
| Perimeter Wall Systems & Fixtures · Structural Slotted Outrigger Wall Run with Hangrails — Retail | 2,000 × 600 mm | 2 | Hang-rail wall runs on the left wall |
| Display Showcases · Recessed Architectural Wall Vitrine — Retail | 1,600 × 350 mm | 2 | Glass wall vitrines on the right wall |
| Apparel Displays · Tiered Nesting Display Tables (3-Pc) — Retail | 1,500 × 750 mm | 1 | A nesting table where the visitor comes in |
| Feature | What it does | Where |
|---|---|---|
| Rooms and walls | Set each room's inside size in metres or feet; add doors and windows; join rooms that share a wall. | 2D |
| Catalog items | Place items in 2D, then move them in 2D or 3D, duplicate them or turn them with the rotation dial; Undo and Redo for every change. | 2D and 3D |
| Space around | Shows the gap on each side of the selected item, such as the aisle beside a station or a table. | 2D item card |
| Plan check | Lists the plan's clearance warnings and blocking problems, such as overlapping items or a blocked doorway, to review. | Top bar |
| Present and walkthrough | A clean 3D view with each finish called out, and a walk at eye height with W A S D or the on-screen steps. | 3D |
| Save and share | Export the plan without an account; sign in to save versions and publish a view-only link. | Share |
QUESTIONS
Retail store floor plan questions
How wide should aisles be in a retail store?
An accessible route through the shop needs at least 36 in (915 mm) of clear width under the 2010 ADA Standards, with a 60 in (1,525 mm) circle or T-shaped space wherever a wheelchair has to turn. Your adopted building and fire codes set the exit aisles, which can be wider. [1]
How high should a cash wrap or sales counter be?
The ADA Standards set no single counter height, but a sales counter needs a part at most 36 in (915 mm) high: 36 in long for a side approach, or 30 in long with knee space. A counter at an accessible check-out aisle can be up to 38 in (965 mm). The template's cash wrap is a 1,050 mm concept model with no lowered part, so add one in your own plan. [1]
How big should a fitting room be?
An accessible fitting room needs a 60 in (1,525 mm) turning space and a bench 42 in long and 20 to 24 in deep, its seat 17 to 19 in high. The template's fitting bank is three 1.2 m cabins; check your own cabins with their supplier. [1]
How many people can a 1,000 sq ft shop hold?
For sizing exits, the building code counts one occupant per 60 ft² gross of sales floor, so 1,000 ft² gives about 17 people (1,000 ÷ 60 = 16.7). That factor sizes exits and washrooms; it is not a comfort or merchandising figure. [2]
Will FloorPlanCraft check my store against the code?
No. Plan check flags overlapping items, blocked doorways and the clearance guidance it carries; the figures on this page are published planning references. A layout is a concept for discussion: confirm exits, aisles and accessibility with your building authority and a qualified professional.
Do I need an account, and can I use it on a phone?
No account is needed to open the template, edit it and export a plan; sign in to save versions and publish a view-only link. You can read this page and open shared plans on a phone; for drawing the plan, use a desktop or laptop.
References
Sources of the figures on this page, read on 25 October 2026.
- 2010 ADA Standards for Accessible DesignU.S. Access Board. §403.5.1, walking surfaces 36 in (915 mm) clear; §904.4.1-904.4.2, a sales counter part at most 36 in (915 mm) high and at least 36 in long (30 in for a forward approach); §904.3.2, check-out aisle counters at most 38 in (965 mm) high; §803, dressing and fitting rooms with a 60 in turning space and a bench; §903, a bench 42 in long and 20 to 24 in deep, seat 17 to 19 in high.
- 2021 Illinois Building Code (the 2021 International Building Code as adopted): Section 1004.5, Areas without fixed seatingUpCodes. Table 1004.5: mercantile, 60 ft² gross per occupant; storage, stock and shipping areas, 300 ft² gross.An occupant load factor sizes exits and fixtures; it is not a space standard. Model-code text as adopted by one state; your jurisdiction's adopted edition decides.
Open the boutique template
An editable 2D plan, 3D view and walkthrough of a clothing boutique. No sign-up to try.
Start from the boutique template
