5,000 sq ft indoor playground floor plan

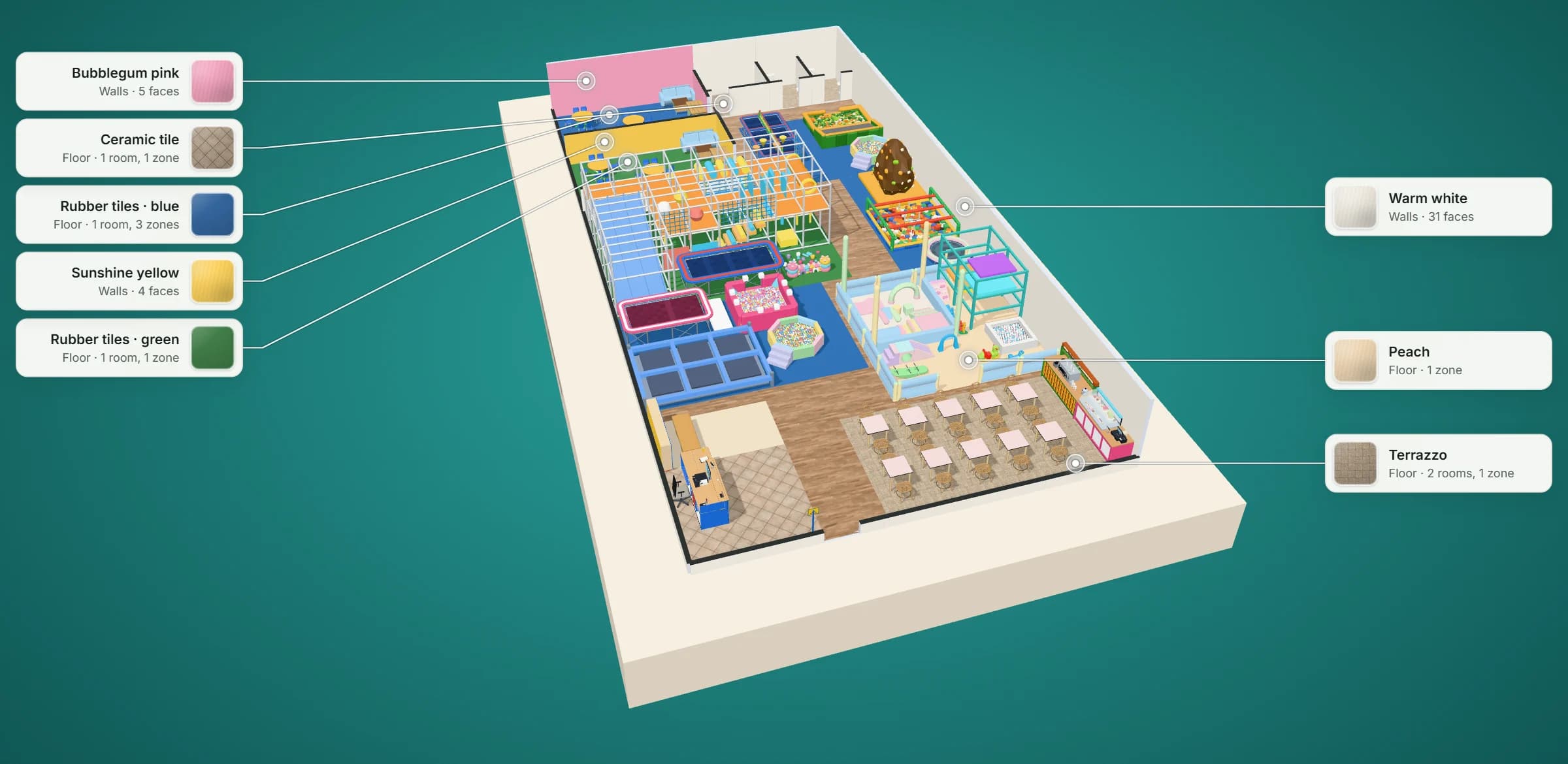

50 × 100 ft (15.24 × 30.48 m) inside the walls: a 3,976 sq ft play hall in zones, with 25 pieces of play equipment (13 of them real products) round a real multi-level soft-play structure (Go Play Systems GPS1053), reception and shoe cubbies by the entrance, two party rooms, and two washrooms and storage across the back.
Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.
- 5,000 sq ftinside the walls, 50 × 100 ft (15.24 × 30.48 m)
- 25pieces of play equipment, 13 real products
- 3,976 sq ftplay hall floor, 80% of the plan
- 62seats for parents and parties
- 0Plan check findings: no blocking issue, no use zone warning
THE PLAN
The floor plan, room by room
Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.
| Room | Size inside the walls | Floor |
|---|---|---|
| Birthday party room 1 | 24 × 16 ft (7.32 × 4.88 m) | 384 sq ft |
| Birthday party room 2 | 24 × 16 ft (7.32 × 4.88 m) | 384 sq ft |
| Storage | 10 ft 6 in × 8 ft (3.21 × 2.44 m) | 84 sq ft |
| Washroom A | 7 × 8 ft (2.13 × 2.44 m) | 56 sq ft |
| Washroom B | 7 × 8 ft (2.13 × 2.44 m) | 56 sq ft |
| Play hall | 50 ft × 91 ft 6 in (15.24 × 27.89 m) overall, L-shaped | 3,976 sq ft |
6 doors and 2 windows; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.
| Item | Count |
|---|---|
| Floor toilet | 2 |
| Wash basin | 2 |
| Party Table · Round Six | 6 |
| Kids Chair · Stacking | 36 |
| Cafe Table · Communal | 2 |
| Parent Bench · Sofa | 2 |
| Cafe Table · Low Lounge | 2 |
| Trampoline · Dodgeball | 1 |
| Soft Blocks · Steps Set | 1 |
| Foam Pit · Launch | 1 |
| RT-008B Octagon Ball Pit with Stair | 2 |
| GPS1053 Two-Level Play Structure with Wave Slide | 1 |
| Climbing Wall · Boulder | 1 |
| Foam Pit · Ninja Landing | 1 |
| Trampoline · Toddler | 1 |
| Trampoline · Single | 1 |
| Soft Blocks · Castle Set | 1 |
| Trampoline · Tumble Track | 1 |
| Modular trampoline bay | 1 |
| Ballpit · Castle | 1 |
| Barrier Panel · Low Toddler | 11 |
| Softplay · Toddler Zone | 1 |
| RT-010B Triangle Climber with Tunnel | 1 |
| Compact contained-play frame | 1 |
| RT-012A Climb, Tunnel and Slide Set | 1 |
| JYG-340 Crawl-Through Arch | 1 |
| HX5401H Three-Seat Rocker | 1 |
| RT-004A Square Ball Pit | 1 |
| FY16303 Animal Rocker | 1 |
| 15-103A Toddler Rocker | 1 |
| LL-610869C Three-Colour Rocking Horse | 1 |
| JYG-13213A Rocking Horse | 1 |
| Reception Desk · Straight | 1 |
| Chair · Office — Studio | 1 |
| Shoe Cubbies · Numbered | 2 |
| Parent Bench · Backless | 1 |
| Stroller Parking · Bays | 1 |
| Cafe Counter · Coffee Station | 1 |
| Cafe Counter · With Display | 1 |
| Cafe Table · Square Four Leg | 10 |
| Cafe Chair · Bentwood | 20 |
PLAY EQUIPMENT
What fits in a 5,000 sq ft indoor playground?
The play hall is 3,976 sq ft (369.3 m²), 80% of the plan; its centrepiece, Go Play Systems' GPS1053 Two-Level Play Structure with Wave Slide (24 × 32 ft, 10 ft high), covers 15% of it, and all the play equipment 47%. The CPSC handbook asks for a use zone of 1,829 mm (72 in) around public playground equipment such as playhouses, climbers and slides [1]; this plan has none of those, so the planner keeps no zone here. Soft contained play is outside the handbook's scope [1], so the planner keeps no zone around it, nor around the ball pits, rockers, trampolines and the climbing wall, for which its rules have no figure.
| Equipment | Model | Size | Use zone kept | Count |
|---|---|---|---|---|
| Trampoline · Dodgeball | Generic concept model | 2,100 × 4,200 mm | None | 1 |
| Soft Blocks · Steps Set | Generic concept model | 1,880 × 1,580 mm | None | 1 |
| Foam Pit · Launch | Generic concept model | 3,200 × 3,200 mm | None | 1 |
| RT-008B Octagon Ball Pit with Stair | Real product, published size | 2,425 × 2,425 mm | None | 2 |
| GPS1053 Two-Level Play Structure with Wave Slide | Real product, published size | 7,315 × 9,754 mm | None | 1 |
| Climbing Wall · Boulder | Generic concept model | 3,000 × 2,400 mm | None | 1 |
| Foam Pit · Ninja Landing | Generic concept model | 3,200 × 3,200 mm | None | 1 |
| Trampoline · Toddler | Generic concept model | 2,100 × 2,100 mm | None | 1 |
| Trampoline · Single | Generic concept model | 2,100 × 4,200 mm | None | 1 |
| Soft Blocks · Castle Set | Generic concept model | 1,876 × 1,589 mm | None | 1 |
| Trampoline · Tumble Track | Generic concept model | 2,100 × 4,200 mm | None | 1 |
| Modular trampoline bay | Generic concept model | 4,800 × 3,200 mm | None | 1 |
| Ballpit · Castle | Generic concept model | 2,400 × 2,400 mm | None | 1 |
| Softplay · Toddler Zone | Generic concept model | 3,600 × 3,600 mm | None | 1 |
| RT-010B Triangle Climber with Tunnel | Real product, published size | 1,400 × 600 mm | None | 1 |
| Compact contained-play frame | Real product, published size | 3,300 × 2,200 mm | None | 1 |
| RT-012A Climb, Tunnel and Slide Set | Real product, published size | 2,000 × 600 mm | None | 1 |
| JYG-340 Crawl-Through Arch | Real product, published size | 840 × 180 mm | None | 1 |
| HX5401H Three-Seat Rocker | Real product, published size | 1,460 × 490 mm | None | 1 |
| RT-004A Square Ball Pit | Real product, published size | 1,500 × 1,500 mm | None | 1 |
| FY16303 Animal Rocker | Real product, published size | 820 × 300 mm | None | 1 |
| 15-103A Toddler Rocker | Real product, published size | 840 × 300 mm | None | 1 |
| LL-610869C Three-Colour Rocking Horse | Real product, published size | 840 × 300 mm | None | 1 |
| JYG-13213A Rocking Horse | Real product, published size | 750 × 310 mm | None | 1 |
Real products are the playground library's branded items at their makers' published sizes; generic models have approximate sizes. The use zone is the handbook's voluntary guideline [1], checked as guidance, not compliance. The toddler area's 11 low barrier panels are not counted as play equipment.
| Where | What | Seats |
|---|---|---|
| Party rooms (2) | Kids' chairs round three round party tables, and a parents' sofa, in each | 42 |
| Café | 10 two-tops, the aisle between tables kept, and a counter of two units | 20 |
A parents' bench or party-room sofa counted as three seats; the shoe bench by the entrance is not counted.
Washrooms: two of 7 × 8 ft, each with a toilet and a basin. How many your venue needs is set by your plumbing code's fixture counts, and how many children it may hold by your building official; this page checks neither.
IN PRACTICE
The 5,000 sq ft indoor playground plan in practice
At 5,000 sq ft two party rooms of 24 × 16 ft stand one behind the other down the left wall, one pink on a blue rubber floor, one yellow on green, each laid with three round kids' party tables in a cluster, each a different bright colour with six kids' chairs (18 children), a cake and gift table, and a parents' corner with a sofa for 3, so two parties can run at once. The café has a real counter (two counter units on the right wall) and 10 two-tops (20 seats) facing the toddler area and the structure.
The centrepiece is a real product, Go Play Systems' GPS1053 Two-Level Play Structure with Wave Slide (24 × 32 ft, 10 ft high at its maker's published size; it stands on 581 sq ft, 15% of the play hall), against the left wall below the party rooms, its three-lane wave slide running toward the front of the hall. Active play surrounds it: a trampoline, soft steps, a foam pit and the octagon ball pit beside the party rooms; a climbing wall, a ninja foam pit and a toddler trampoline at its right; a trampoline and soft blocks beside the slide; a tumble track, a modular trampoline bay, a castle ball pit and a second octagon ball pit in front. The fenced toddler area (11 pieces) stands next to the café, and play equipment covers 47% of the hall.
PLAN CHECK
What the planner checked
The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.
| Guidance (and its source) | Items it applies to | In this plan |
|---|---|---|
| Leave 305 mm (12 in) of aisle between tables, beyond a 483 mm (19 in) chair line where people sit (IBC, as adopted in Minnesota). | 18 | Kept |
| Keep 1.4 m (4 ft 7 in) by 2.2 m (7 ft 3 in) clear in front of a reception counter for a wheelchair user (Part M guidance, England; 1.2 m (3 ft 11 in) by 1.8 m (5 ft 11 in) with a knee recess). | 1 | Kept |
| Keep 914 mm (3 ft) clear along a serving counter for the queue; 1.07 m (3 ft 6 in) is better (Massachusetts 521 CMR 17.6.1). | 2 | Kept |
Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.
AT THIS SIZE
What changes at this size
- At 50 × 100 ft, the back row is storage and two washrooms beside the party rooms, and the play hall takes 80% of the floor, in zones with their own floors: active play, soft-play structure, active play, active play, toddler area, shoes & cubbies, reception and café.
- The centrepiece is a real product, Go Play Systems' GPS1053 Two-Level Play Structure with Wave Slide (24 × 32 ft, 10 ft high at its maker's published size; it stands on 581 sq ft, 15% of the play hall); 11 pieces stand in the fenced toddler area.
- Play equipment covers 47% of the play hall. None of the 25 pieces is equipment the CPSC handbook gives a 1,829 mm (72 in) use zone (playhouses, climbers, slides), so no empty ring is kept round any of them; add a freestanding slide or playhouse and the planner keeps its zone.
- Against the 3,000 sq ft indoor playground plan: 2,000 sq ft more inside the walls, 7 more pieces of play equipment and 33 more seats.
OTHER SIZES
Compared with the other sizes
| Plan | Inside the walls | Play hall | Play pieces | Party rooms | Seats |
|---|---|---|---|---|---|
| 1,500 sq ft indoor playground | 30 × 50 ft | 1,245 sq ft | 13 | 0 | 6 |
| 3,000 sq ft indoor playground | 50 × 60 ft | 2,379 sq ft | 18 | 1 | 29 |
| 5,000 sq ft indoor playground (this plan) | 50 × 100 ft | 3,976 sq ft | 25 | 2 | 62 |
Seats: kids' party chairs, café chairs, and three per parents' bench or sofa.
QUESTIONS
Questions about this plan
How much play space is in a 5,000 sq ft indoor playground?
In this plan the play hall is 3,976 sq ft of the 5,000 sq ft, 80%; the party rooms, storage, two washrooms and the walls take the rest. The Go Play Systems GPS1053 structure covers 15% of the hall and all the play equipment 47%, with walkways of at least 1,200 mm (47 in) between the zones. No piece is one the CPSC handbook gives its 1,829 mm (72 in) use zone (playhouses, climbers, slides), so none is kept. [1]
How many children can a 5,000 sq ft indoor playground hold?
This plan does not set a capacity. Your building official sets the occupant load from the floor and its use, and each piece of play equipment comes with its maker's instructions; the plan's 25 pieces and 62 seats are a starting point for that conversation, not an answer to it.
Why does the 5,000 sq ft indoor playground plan have two party rooms?
So two parties can run at once: each 24 × 16 ft room seats 18 children round three round kids' tables and 3 adults on a parents' sofa, with a cake and gift table, and has its own door onto the play hall. Together they take 768 sq ft, 15% of the plan.
References
Sources of the figures this page compares the plan with.
- Public Playground Safety HandbookU.S. Consumer Product Safety Commission, Publication 325. Use zones: stationary equipment, a minimum of 6 feet in all directions from the perimeter (§5.3.10); slides, 6 feet to the sides and at the exit of a slide up to 6 feet high (§5.3.6); its scope, which leaves out soft contained play equipment.Voluntary guidelines for public playgrounds, not a code. The standards for soft contained play were not read.
