1,000 sq ft restaurant floor plan
25 × 40 ft (7.62 × 12.19 m) inside the walls: a kitchen with a pass and one washroom across the back, and 34 seats in 3 four-tops, 5 two-tops and 3 booths, every table aisle checked by the planner.
Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.
- 1,000 sq ftinside the walls, 25 × 40 ft (7.62 × 12.19 m)
- 34seats at 11 tables
- 663 sq ftdining room floor
- 19 sq ftof dining room per seat
- 0Plan check findings: no blocking issue, no aisle warning
THE PLAN
The floor plan, room by room
Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.
| Room | Size inside the walls | Floor |
|---|---|---|
| Washroom | 7 × 8 ft (2.13 × 2.44 m) | 56 sq ft |
| Washroom corridor | 7 ft × 4 ft 6 in (2.13 × 1.37 m) | 32 sq ft |
| Kitchen | 17 ft 6 in × 13 ft (5.34 × 3.96 m) | 228 sq ft |
| Dining room | 25 ft × 26 ft 6 in (7.62 × 8.08 m) | 663 sq ft |
5 doors and 2 windows; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.
| Item | Count |
|---|---|
| Floor toilet | 1 |
| Wash basin | 1 |
| Fridge · Four Door | 1 |
| Stove · Professional | 1 |
| Stove · Gas Range — Studio | 1 |
| Stove · Bistro | 1 |
| Stainless preparation table | 1 |
| Sink · Commercial | 1 |
| Dishwasher · Commercial — Studio II | 1 |
| Fridge · Glass Door | 1 |
| Fridge · Chest Freezer — Studio II | 1 |
| Breakroom & Cafeteria · Acoustic Fluted High-Back Dining Booth — Workplace | 6 |
| Collaborative Tables · Cantilevered Booth Dining Table — Workplace | 3 |
| Round cafe table | 3 |
| Cafe Chair · Bentwood | 22 |
| Hotel Dining Tables · Pedestal Marble Bistro Table — Hotel | 5 |
| Training & Multipurpose · Pneumatic Height-Adjustable Mobile Lectern — Workplace | 1 |
| Hotel Sofas · High-Back Architectural Banquette — Hotel | 1 |
| Wardrobe & Minibars · Low Profile Minibar Credenza — Hotel | 1 |
| Plants · Snake Plant | 1 |
SEATS
How many seats fit in a 1,000 sq ft restaurant?
This plan seats 34 in a 663 sq ft (61.6 m²) dining room. Area-per-seat figures from a restaurant design textbook [1] and the building code's occupant load [2] give the room's range, from the same dining room area.
| Method | Figure | Seats |
|---|---|---|
| This plan | 3 four-tops, 5 two-tops and 3 booths; aisles at the planner's figures, a 1,200 mm main aisle kept clear | 34 |
| Quick service | 10 to 12 sq ft per seat | 55 to 66 |
| Casual dining | 13 to 15 sq ft per seat | 44 to 50 |
| Table service (upscale) | 16 to 20 sq ft per seat | 33 to 41 |
| Occupant load (2021 IBC) | 15 net sq ft per occupant, tables and chairs | 44 |
The textbook ranges divide the dining room's floor by an area per seat [1]; the plan places real tables, a host stand and a waiting bench, keeps each table's 483 mm chair line and 305 mm aisle [3] and a main aisle wider than the 915 mm route [4], so it seats fewer than the casual range (44 to 50).
At least 2 of the 34 seats should be at accessible dining surfaces (5 percent, 2010 ADA §226.1) [4]; the plan does not mark which. Kitchen: 228 sq ft kitchen.
IN PRACTICE
The 1,000 sq ft plan in practice
At 1,000 sq ft the back row (kitchen, washroom and its corridor) takes a real share of the floor: the kitchen alone is 228 sq ft, 23% of the 1,000 sq ft, because a working line, a pass and a dish station need that much whatever the room seats. The dining room seats 34: three booths against the left wall, a column of round four-tops beside them, and two-tops for couples.
There is no bar and no separate store at this size: the fridges and the chest freezer stand in the kitchen. Guests and servers share one main aisle, at least 1,200 mm wide, from the door past the host stand to the kitchen door and the washroom corridor, so the tables either side of it are the room's busiest.
PLAN CHECK
What the planner checked
The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.
| Guidance (and its source) | Items it applies to | In this plan |
|---|---|---|
| Leave 305 mm (12 in) of aisle between a banquette's back and a table's 483 mm (19 in) chair line (IBC, as adopted in Minnesota). | 6 | Kept |
| Leave 305 mm (12 in) of aisle between tables, beyond a 483 mm (19 in) chair line where people sit (IBC, as adopted in Minnesota). | 11 | Kept |
Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.
AT THIS SIZE
What changes at this size

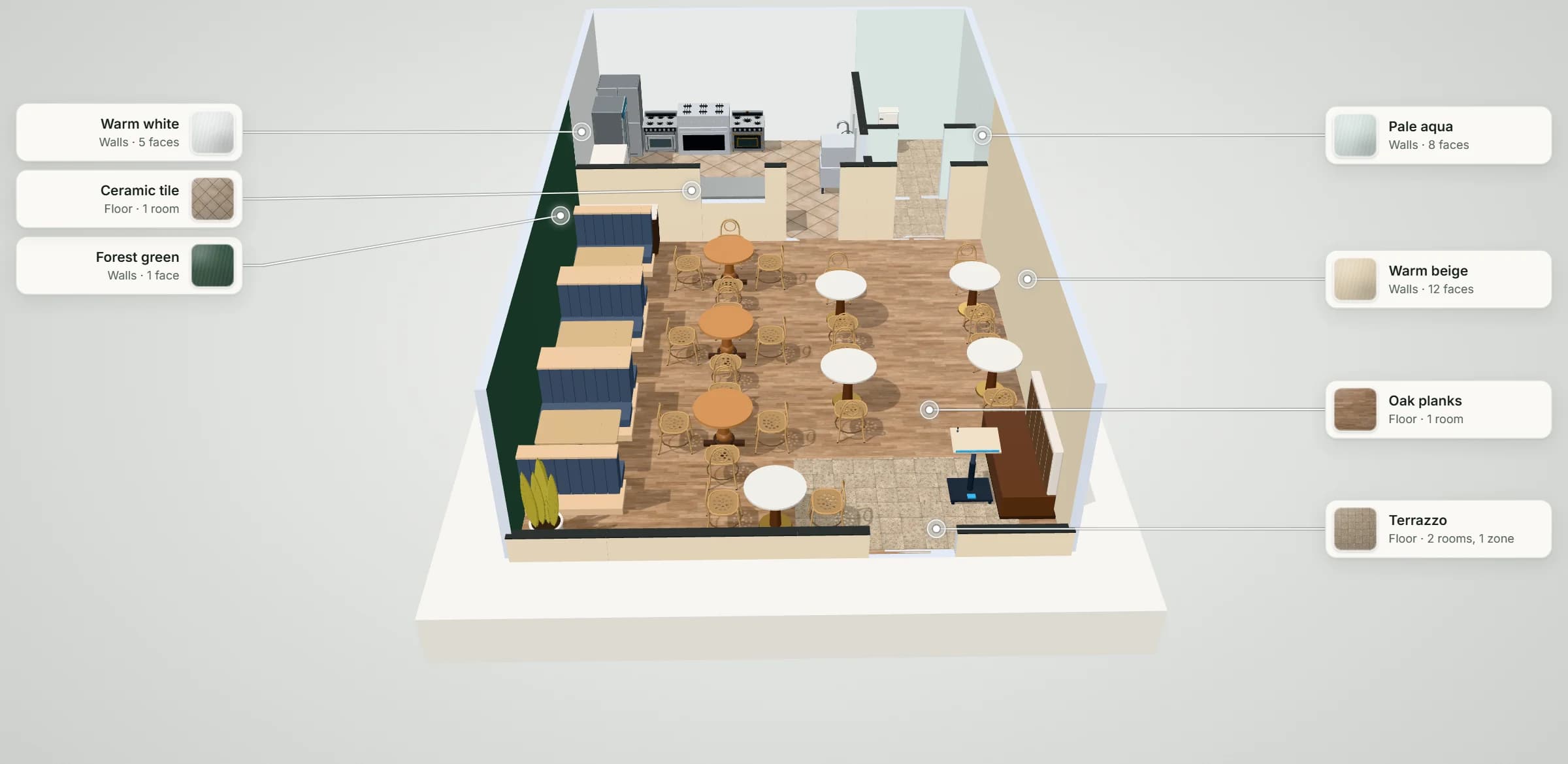

- At 25 × 40 ft: booths down the left wall, round four-tops and marble two-tops in staggered columns, and two-tops at the front windows.
- Guests arrive past a host stand and a waiting bench; a main aisle at least 1,200 mm wide runs from the door to the kitchen and the washroom corridor.
- The kitchen sits behind a wall with a pass: a three-stove cooking line on the back wall, one stainless preparation table including the pass shelf, and the dish sink and dishwasher by the kitchen door; the fridges and freezer stand against its side wall.
- One washroom of 7 × 8 ft opens off a short corridor, with a staff door from the kitchen.
- Against the 1,500 sq ft restaurant plan: 18 fewer seats (34 against 52) and 403 sq ft less dining room.
OTHER SIZES
Compared with the other sizes
| Plan | Inside the walls | Dining room | Seats | Tables | Sq ft per seat |
|---|---|---|---|---|---|
| 1,000 sq ft restaurant (this plan) | 25 × 40 ft | 663 sq ft | 34 | 3 four-tops, 5 two-tops and 3 booths | 19 |
| 1,500 sq ft restaurant | 30 × 50 ft | 1,065 sq ft | 52 | 5 four-tops, 4 two-tops, 4 booths and 4 banquette two-tops | 20 |
| 2,000 sq ft restaurant | 40 × 50 ft | 1,420 sq ft | 68 | 6 four-tops, 6 two-tops, 2 six-tops, 4 booths and 4 bar stools | 21 |
| 2,500 sq ft restaurant | 50 × 50 ft | 1,725 sq ft | 85 | 9 four-tops, 8 two-tops, 2 six-tops, 4 booths and 5 bar stools | 20 |
| 3,000 sq ft restaurant | 50 × 60 ft | 2,175 sq ft | 105 | 12 four-tops, 10 two-tops, 2 six-tops, 5 booths and 5 bar stools | 21 |
Sq ft per seat: the dining room's floor (with its host stand, waiting bench and bar) divided by the plan's seats; kitchen, store and washrooms not counted.
QUESTIONS
Questions about this plan
How many seats are in a 1,000 sq ft restaurant?
This plan seats 34 in a 663 sq ft dining room; the kitchen, washroom and corridor take the rest of the 1,000 sq ft. At a textbook's casual-dining 13 to 15 sq ft per seat, the same dining room would hold 44 to 50 seats; the plan also fits a host stand, booths and every table's aisle. [1, 3]
What is the occupant load of this 1,000 sq ft restaurant's dining room?
The 2021 IBC allows 15 net sq ft per occupant for tables and chairs: 663 sq ft ÷ 15 = 44 occupants, more than the plan's 34 seats. Your building official decides the occupant load and the exits it needs. [2]
How big is the kitchen in a 1,000 sq ft restaurant plan?
This plan's kitchen is 228 sq ft, 23% of the 1,000 sq ft, behind a wall with a pass hatch: a cooking line of three stoves on the back wall, the pass shelf under the hatch, a dish sink and dishwasher by the door, and the fridges and freezer on the side wall. One 7 × 8 ft washroom off a short corridor takes the rest of the back row.
References
Sources of the figures this page compares the plan with.
- Restaurant Design: Concept to Customer, 7.5 Spatial Aspects of RestaurantWilliam R. Thibodeaux, Chef John Folse Culinary Institute, Nicholls State University; Workforce LibreTexts (CC BY-NC-SA 4.0). Dining Area: the space range per seat in quick service (10 to 12 ft²), casual (13 to 15 ft²) and luxury (16 to 20 ft²) dining rooms; Seating and Tables: an equal balance of two-tops and four-tops.
- 2021 Illinois Building Code (the 2021 International Building Code as adopted): Section 1004.5, Areas without fixed seatingUpCodes. Table 1004.5, Maximum floor area allowances per occupant (assembly without fixed seats, unconcentrated: tables and chairs, 15 ft² net); Section 1004.5.1, Increased occupant load (at most one occupant per 7 ft²).Model-code text as adopted by one state; the International Code Council's own text was not checked. Your jurisdiction's adopted edition decides.
- Minnesota Rules 1305.1018, Section 1018, Aisles (the International Building Code's aisle section as amended in Minnesota)Legal Information Institute, Cornell Law School. §1018.2, measured to a line 19 in (483 mm) from a seated table edge; §1018.2.1, aisle accessway 12 in (305 mm) plus 0.5 in (12.7 mm) per foot beyond 12 ft, with its exception for stretches up to 6 ft used by four people or fewer; §1018.2.2, aisles at least 36 in (914 mm).One state's adoption of the model code; other jurisdictions number and amend these sections differently.
- 2010 ADA Standards for Accessible DesignU.S. Access Board. §226.1, dining surfaces (at least 5 percent of seating); §305.3, clear floor space 30 x 48 in (760 x 1220 mm); §304.3.1, turning space 60 in (1525 mm); §403.5.1, walking surfaces 36 in (915 mm); §902.3, dining surface height 28 to 34 in (710 to 865 mm).
