3,000 sq ft restaurant floor plan

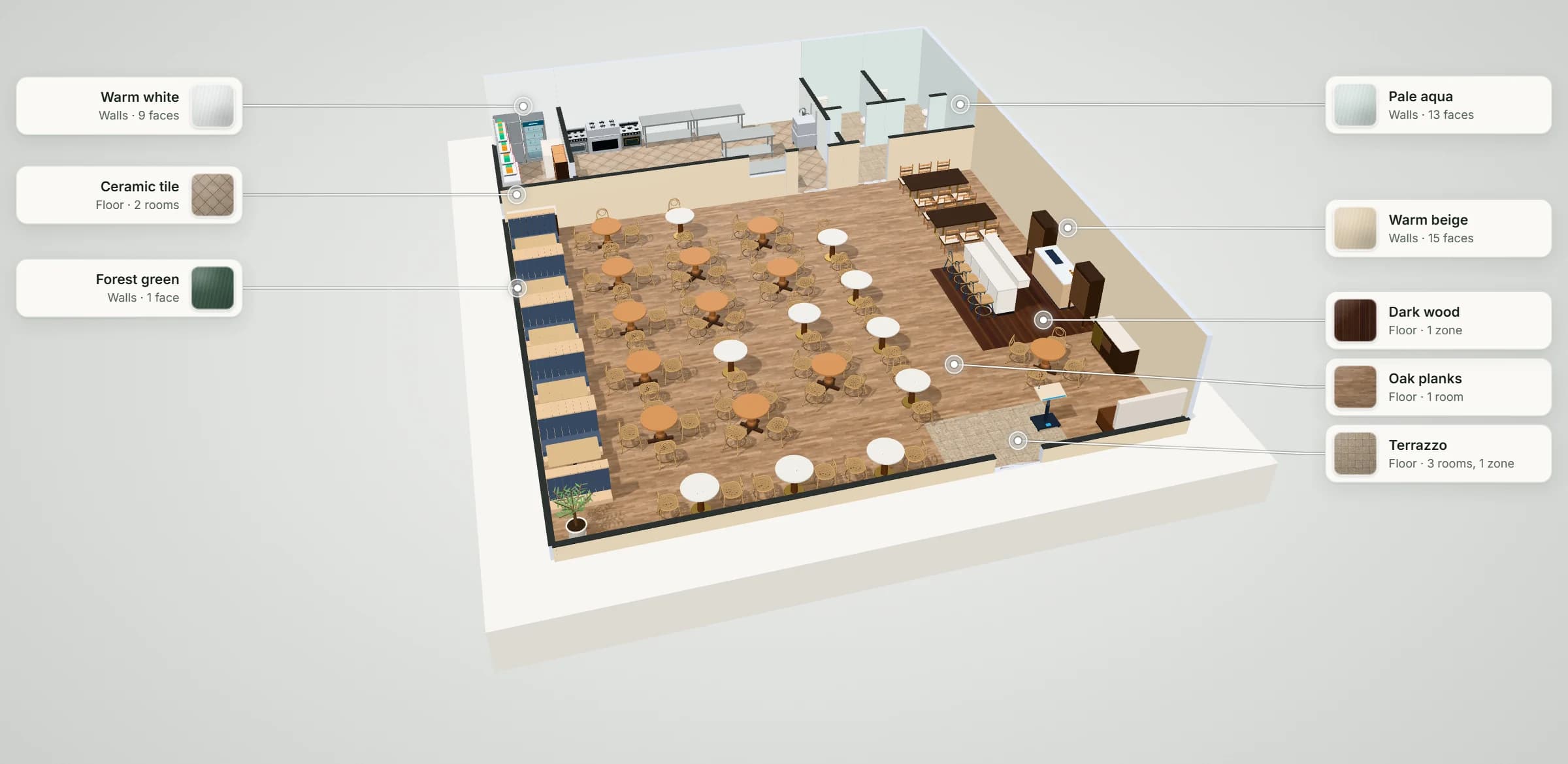

50 × 60 ft (15.24 × 18.29 m) inside the walls: a kitchen with a pass and two washrooms across the back, and 105 seats in 12 four-tops, 10 two-tops, 2 six-tops, 5 booths and 5 bar stools, every table aisle checked by the planner.
Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.
- 3,000 sq ftinside the walls, 50 × 60 ft (15.24 × 18.29 m)
- 105seats at 29 tables and the bar
- 2,175 sq ftdining room floor
- 21 sq ftof dining room per seat
- 0Plan check findings: no blocking issue, no aisle warning
THE PLAN
The floor plan, room by room
Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.
| Room | Size inside the walls | Floor |
|---|---|---|
| Washroom A | 7 × 8 ft (2.13 × 2.44 m) | 56 sq ft |
| Washroom B | 7 × 8 ft (2.13 × 2.44 m) | 56 sq ft |
| Washroom corridor | 14 ft 6 in × 7 ft 6 in (4.42 × 2.29 m) | 109 sq ft |
| Kitchen | 27 ft 6 in × 16 ft (8.39 × 4.88 m) | 440 sq ft |
| Dry & cold store | 7 × 16 ft (2.13 × 4.88 m) | 112 sq ft |
| Dining room | 50 ft × 43 ft 6 in (15.24 × 13.26 m) | 2,175 sq ft |
8 doors and 4 windows; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.
| Item | Count |
|---|---|
| Floor toilet | 2 |
| Wash basin | 2 |
| Stove · Professional | 1 |
| Stove · Gas Range — Studio | 1 |
| Stove · Bistro | 1 |
| Stainless preparation table | 4 |
| Sink · Commercial | 1 |
| Dishwasher · Commercial — Studio II | 1 |
| Fridge · Four Door | 1 |
| Fridge · Glass Door | 1 |
| Retail Gondola Shelving · Heavy-Duty Wall Gondola (LED Rails) — Retail | 1 |
| Fridge · Chest Freezer — Studio II | 1 |
| Storage cubes | 1 |
| Breakroom & Cafeteria · Acoustic Fluted High-Back Dining Booth — Workplace | 10 |
| Collaborative Tables · Cantilevered Booth Dining Table — Workplace | 5 |
| Round cafe table | 12 |
| Cafe Chair · Bentwood | 68 |
| Hotel Dining Tables · Pedestal Marble Bistro Table — Hotel | 10 |
| Hotel Dining Tables · Live-Edge Hardwood Dining Table — Hotel | 2 |
| Chair · Ladder-Back Dining | 12 |
| Wardrobe & Minibars · Cocktail Cabinet Dry Bar — Hotel | 2 |
| Breakroom & Cafeteria · Commercial Coffee & Tea Bar Station — Workplace | 1 |
| Kitchen Counter · Breakfast Bar — Studio | 2 |
| Cafe Chair · Bar Stool | 5 |
| Wardrobe & Minibars · Low Profile Minibar Credenza — Hotel | 2 |
| Training & Multipurpose · Pneumatic Height-Adjustable Mobile Lectern — Workplace | 1 |
| Hotel Sofas · High-Back Architectural Banquette — Hotel | 1 |
| Plants · Indoor Olive Tree | 1 |
SEATS
How many seats fit in a 3,000 sq ft restaurant?
This plan seats 105 in a 2,175 sq ft (202.1 m²) dining room. Area-per-seat figures from a restaurant design textbook [1] and the building code's occupant load [2] give the room's range, from the same dining room area.
| Method | Figure | Seats |
|---|---|---|
| This plan | 12 four-tops, 10 two-tops, 2 six-tops, 5 booths and 5 bar stools; aisles at the planner's figures, a 1,200 mm main aisle kept clear | 105 |
| Quick service | 10 to 12 sq ft per seat | 181 to 217 |
| Casual dining | 13 to 15 sq ft per seat | 145 to 167 |
| Table service (upscale) | 16 to 20 sq ft per seat | 108 to 135 |
| Occupant load (2021 IBC) | 15 net sq ft per occupant, tables and chairs | 145 |
The textbook ranges divide the dining room's floor by an area per seat [1]; the plan places real tables, a host stand and a waiting bench and a bar, keeps each table's 483 mm chair line and 305 mm aisle [3] and a main aisle wider than the 915 mm route [4], so it seats fewer than the casual range (145 to 167).
At least 6 of the 105 seats should be at accessible dining surfaces (5 percent, 2010 ADA §226.1) [4]; the plan does not mark which. Kitchen and store: 440 sq ft kitchen and a 112 sq ft dry and cold store.
IN PRACTICE
The 3,000 sq ft plan in practice
The 3,000 sq ft plan is as wide as the 2,500 sq ft restaurant plan and 10 ft deeper: a fifth booth, a row more in every column, and a four-top and a second server station past the bar. It seats 105 at 21 sq ft of dining room per seat, five booths and 12 four-tops among them.
The kitchen and the washroom corridor are about 43 ft 6 in from the front door along the main aisle, which stays at least 1,200 mm wide all the way; a second service aisle would cost a column of tables, so the plan keeps one aisle and puts server stations by the pass and the bar.
PLAN CHECK
What the planner checked
The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.
| Guidance (and its source) | Items it applies to | In this plan |
|---|---|---|
| Leave 305 mm (12 in) of aisle between a banquette's back and a table's 483 mm (19 in) chair line (IBC, as adopted in Minnesota). | 10 | Kept |
| Leave 305 mm (12 in) of aisle between tables, beyond a 483 mm (19 in) chair line where people sit (IBC, as adopted in Minnesota). | 29 | Kept |
Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.
AT THIS SIZE
What changes at this size
- At 50 × 60 ft: booths down the left wall, round four-tops and marble two-tops in staggered columns, two six-tops and a bar with five stools on the right, and two-tops at the front windows.
- Guests arrive past a host stand and a waiting bench; a main aisle at least 1,200 mm wide runs from the door to the kitchen and the washroom corridor.
- The kitchen sits behind a wall with a pass: a three-stove cooking line on the back wall, four stainless preparation tables including the pass shelf, and the dish sink and dishwasher by the kitchen door; the fridges, freezer and shelving have their own store with a delivery door.
- Two washrooms of 7 × 8 ft open off a short corridor, with a staff door from the kitchen.
- Against the 2,500 sq ft restaurant plan: 20 more seats (105 against 85) and 450 sq ft more dining room.
OTHER SIZES
Compared with the other sizes
| Plan | Inside the walls | Dining room | Seats | Tables | Sq ft per seat |
|---|---|---|---|---|---|
| 1,000 sq ft restaurant | 25 × 40 ft | 663 sq ft | 34 | 3 four-tops, 5 two-tops and 3 booths | 19 |
| 1,500 sq ft restaurant | 30 × 50 ft | 1,065 sq ft | 52 | 5 four-tops, 4 two-tops, 4 booths and 4 banquette two-tops | 20 |
| 2,000 sq ft restaurant | 40 × 50 ft | 1,420 sq ft | 68 | 6 four-tops, 6 two-tops, 2 six-tops, 4 booths and 4 bar stools | 21 |
| 2,500 sq ft restaurant | 50 × 50 ft | 1,725 sq ft | 85 | 9 four-tops, 8 two-tops, 2 six-tops, 4 booths and 5 bar stools | 20 |
| 3,000 sq ft restaurant (this plan) | 50 × 60 ft | 2,175 sq ft | 105 | 12 four-tops, 10 two-tops, 2 six-tops, 5 booths and 5 bar stools | 21 |
Sq ft per seat: the dining room's floor (with its host stand, waiting bench and bar) divided by the plan's seats; kitchen, store and washrooms not counted.
QUESTIONS
Questions about this plan
How many seats are in a 3,000 sq ft restaurant?
This plan seats 105 in a 2,175 sq ft dining room; the kitchen, store, washrooms and corridor take the rest of the 3,000 sq ft. At a textbook's casual-dining 13 to 15 sq ft per seat, the same dining room would hold 145 to 167 seats; the plan also fits a host stand, booths and every table's aisle. [1, 3]
What is the occupant load of this 3,000 sq ft restaurant's dining room?
The 2021 IBC allows 15 net sq ft per occupant for tables and chairs: 2,175 sq ft ÷ 15 = 145 occupants, more than the plan's 105 seats. Your building official decides the occupant load and the exits it needs. [2]
How far is the kitchen from the door in a 3,000 sq ft restaurant?
About 43 ft 6 in along this plan's main aisle, the dining room's full depth: the kitchen door, the pass and the washroom corridor are at its far end. The aisle stays at least 1,200 mm wide, and every table either side keeps its chair line and aisle.
