1-chair dental clinic floor plan

28 × 30 ft (8.53 × 9.14 m) inside the walls: reception and a waiting room for 6, a 5 ft corridor, one treatment room of 11 × 12 ft, sterilization, a sterilization and an office and a washroom.

Open this plan in the planner Download the plan (PDF, 2 pages, 34 KB)

Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.

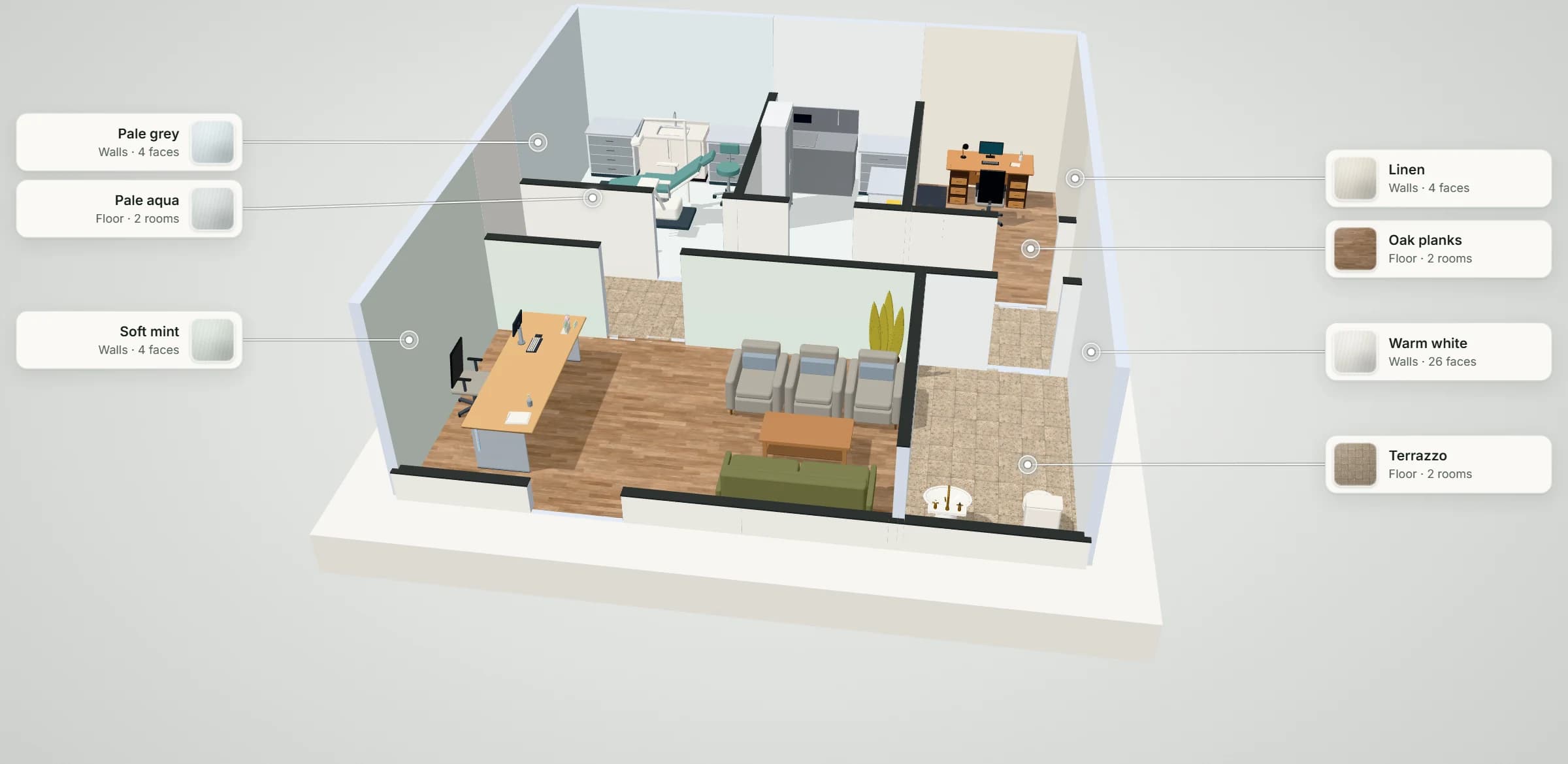

3D model of the 1-chair dental clinic plan: one treatment room with a dental chair and cabinetry each, sterilization, a corridor, and a waiting room with a reception counter and one sofa group, with its floor and wall finishes labelled
This plan in the planner's Present view. Made in FloorPlanCraft.
  • 839 sq ftinside the walls, 28 × 30 ft (8.53 × 9.14 m)
  • 1dental chair
  • 132 sq fteach treatment room, 11 × 12 ft
  • 6waiting seats, in one sofa group
  • 0Plan check findings: no blocking issue, no clearance warning

THE PLAN

The floor plan, room by room

Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.

1-chair dental clinic floor planRead-only two-dimensional projection of Ground floor. The published layer settings show spaces, zones, walls, openings, exits, columns, and stairs. Placed items are shown.EXITSterilizationTreatment room 1Clinic corridorOfficeWashroomReception & waiting
1-chair dental clinic: 28 × 30 ft (8.53 × 9.14 m) inside the walls. The planner's own 2D drawing.
Rooms
RoomSize inside the wallsFloor
Treatment room 111 × 12 ft (3.35 × 3.66 m)132 sq ft
Sterilization8 × 12 ft (2.44 × 3.66 m)96 sq ft
Office8 × 12 ft (2.44 × 3.66 m)96 sq ft
Clinic corridor28 × 5 ft (8.53 × 1.52 m)140 sq ft
Reception & waiting20 ft 6 in × 12 ft (6.25 × 3.66 m)246 sq ft
Washroom7 × 12 ft (2.13 × 3.66 m)84 sq ft

6 doors and 1 window; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.

What stands in the plan
ItemCount
Pharmacy Cabinets · Pharmacy Casework Base — Hospital4
Kitchen Counter · Sink — Studio1
Dental treatment chair1
Clinician stool1
Clinical & surgeon seating · Dental Operator Stool — Hospital1
Medical carts · Suture Treatment — Hospital1
Surgical scrub sinks · Ultrasonic Cleaner Sink — Hospital1
Pharmacy Cabinets · Tall Glass Medicine Cabinet — Hospital1
Waste Receptacles · Sharps Drop Station — Hospital1
Desk · Executive Pedestal1
Chair · Office — Studio2
Office Storage · Lateral Filing Credenza — Workplace1
Floor toilet1
Wash basin1
Reception Desk · Low Open-Knee1
Sofa · Mid-Century — Studio1
Coffee Table · Rect Wood — Studio1
Chair · Armchair — Studio3
Plants · Snake Plant1

ROOM SIZES

How big is a 1-chair dental clinic?

Each treatment room is 11 × 12 ft (3.35 × 3.66 m), 132 sq ft: more than the VA guide's 120 NSF multi-functional room [1] and the DoD criteria's 130 NSF general dentistry room [2]. The waiting room follows dental planners' seats per treatment room [5, 6], and the whole clinic is compared with the ADA rule of thumb [4].

The 1-chair dental clinic's rooms against published figures
WhatThis planPublished figure
Treatment room area132 sq ft eachVA 120 NSF; DoD 130 NSF
Chair movement along the chair3,353 mm (132 in) room, chair centred: 510 mm (20 in) at each endA-dec 511: 2,334 mm (92 in) full range of movement; 500 mm (20 in) beyond it at the head (zone A, our calculator's check)
Waiting seats6 (6 per treatment room) in one sofa groupDental planners: 2 per operatory, 3 where families bring children; DoD: 6 seats for the smallest clinics, at 16 NSF each
Waiting room246 sq ft with a low reception counter with a knee recess and a clear wheelchair space of 30 × 48 in2010 ADA: clear floor space 760 mm (30 in) × 1,220 mm (48 in); DoD: seats in small clusters, room for wheelchairs
Whole clinic839 sq ft (78.0 m²)ADA rule of thumb: 1 × 132 ÷ 0.275 = 480 sq ft
Corridor5 ft (1,524 mm) wide2010 ADA: 1,525 mm (60 in) turning space; 915 mm (36 in) walking surfaces

Sources: VA [1], DoD [2], A-dec [3], Goetze Dental [5], BuildIt [6], the ADA rule as quoted by the ADA's New Dentist Blog [4], 2010 ADA Standards [8]. These are planning guidance, not a code check. The VA guide puts the head of the chair on the corridor side; this plan lays the chair across the room, its cabinetry and sink on the far wall, so the door's swing stays clear of it.

IN PRACTICE

The 1-chair dental clinic in practice

A one-chair clinic suits a single dentist starting out, or a satellite surgery: 839 sq ft that still keeps treatment, sterilization and waiting apart, with a 96 sq ft office for records and phone calls.

The waiting room is a sitting room rather than a row of chairs, and it seats as many as a larger clinic's minimum. At 839 sq ft the plan is 359 sq ft larger than the ADA rule of thumb for one room (480 sq ft), because a waiting room and a corridor do not shrink with the chair count.

PLAN CHECK

What the planner checked

The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.

Clearance guidance that applies to items in this plan
Guidance (and its source)Items it applies toIn this plan
Keep 2.33 m (7 ft 8 in) along a dental chair for its full movement; this is one maker's chair and others differ (A-dec 511 guide).1Kept
Keep 1.2 m (3 ft 11 in) by 1.8 m (5 ft 11 in) clear in front of a reception counter with a knee recess for a wheelchair user (Part M guidance, England).1Kept

Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.

AT THIS SIZE

What changes at this size

  • The treatment room, sterilization and a 8 × 12 ft office share the back row; the corridor runs the clinic's 28 ft width, and the waiting room and the washroom take the front.
  • The waiting room seats six, the smallest clinic's minimum: a sofa against the front windows and three armchairs facing it across a coffee table, beside a clear 30 × 48 in wheelchair space.
  • Against the 2-chair dental clinic plan: 90 sq ft less inside the walls and the same number of waiting seats.

OTHER SIZES

Compared with the other sizes

The five dental clinic plans side by side
PlanInside the wallsAreaADA rule of thumbRoomsWaiting seats
1-chair dental clinic (this plan)28 × 30 ft839 sq ft480 sq ft1 treatment, 5 other6
2-chair dental clinic31 × 30 ft929 sq ft960 sq ft2 treatment, 4 other6
3-chair dental clinic50 ft 6 in × 32 ft1,614 sq ft1,440 sq ft3 treatment, 6 other9
4-chair dental clinic50 ft 6 in × 45 ft 6 in2,295 sq ft1,920 sq ft4 treatment, 8 other12
6-chair dental clinic59 ft 6 in × 45 ft 6 in2,704 sq ft2,880 sq ft6 treatment, 8 other18

ADA rule of thumb: treatment rooms × their area ÷ .275, the ADA design guide's formula as its New Dentist Blog quotes it. Waiting seats: sofa and armchair seats, a three-seat sofa counting three; three per treatment room, never fewer than six.

QUESTIONS

Questions about this plan

How many square feet is a 1-chair dental clinic?

This plan is 839 sq ft inside the walls, 28 × 30 ft: one treatment room of 132 sq ft, sterilization, a sterilization and an office, a corridor, reception and waiting, and a washroom. The ADA rule of thumb (treatment rooms × their area ÷ .275) gives 480 sq ft for the same rooms. [4]

How many waiting room seats does a 1-chair dental clinic need?

Dental planners suggest about 2 reception seats per operatory, and 3 where families bring children; the DoD criteria start every clinic at 6. This plan seats six waiting seats (246 sq ft with the counter), plus a clear 30 × 48 in wheelchair space. How busy your schedule is decides the right number. [5, 6, 2, 8]

What size are the treatment rooms in this 1-chair dental clinic?

Each is 11 × 12 ft (132 sq ft), more than the VA's 120 NSF room and the DoD's 130 NSF. The chair lies along the 11 ft side: centred, its 2,334 mm full movement leaves 510 mm at each end; cabinetry and a sink run along the far wall, with the clinician's and the assistant's stools either side of the chair. [1, 2, 3]

What fits in a 1-chair dental clinic besides the treatment room?

In this plan: a 96 sq ft sterilization room, a 96 sq ft office, a 5 ft corridor, a waiting room of 246 sq ft with the reception counter and six waiting seats, and a 7 × 12 ft washroom.

References

Sources of the figures this page compares the plan with.

  1. Dental Service Design GuideU.S. Department of Veterans Affairs, Office of Construction & Facilities Management, June 2014. Section 4 guide plates: Multi-functional treatment room DNTG1, 120 NSF / 11.1 NSM (p.85); Special Needs Patient treatment room DNTG5, 144 NSF / 13.3 NSM (p.103); Oral Surgery minor procedure room DNTS1, 180 NSF (p.121); panoramic X-ray DNXS1 and cone-beam CT DNXC1, 165 NSF each (pp.53, 69). Section 3 p.32: the head of the chair on the corridor side, the chair centred in the room.A US federal design guide for VA clinics; its plates are typical configurations, not project requirements.
  2. DoD Space Planning Criteria, Chapter 320: Dental ServicesDefense Health Agency, May 10, 2022 (Whole Building Design Guide). Section 1, the smallest clinic (three general dentistry rooms and one hygiene room, p.4); §3.1, net-to-department gross factor 1.40 (p.8); §3.2 items 9-10, waiting seats in small clusters with space for wheelchairs and open floor between the seats and reception; Section 5, room-by-room net square feet for reception, treatment, radiography, laboratory, clinic support and staff rooms (pp.13-20), including Waiting WRC01: 120 NSF for six seats at 16 NSF and one at 25 NSF, plus 64 NSF for every two treatment chairs above four.Written for military treatment facilities; common areas (lobbies, staff toilets, lockers, lounges) are in its Chapter 610 and not counted here.
  3. Pre-Installation Guide: A-dec 511flt/511B Dental Chair and Related Modules, 86.0753.00 Rev GA-dec. Plan Views and Dimensions (p.9): full range of chair movement 2334 mm at the factory-set upper limit and 2410 mm at the maximum; backrest 631 mm and baseplate 684 mm wide; headrest extension 244 mm; forward travel 229 or 305 mm.One maker's chair; other chairs differ. The guide says its drawings are for reference and points to full-size templates.
  4. Determining the ideal size and space of your practiceAmerican Dental Association, New Dentist Blog, November 12, 2014. The formula it quotes from the ADA's dental office design guide: number of operatories × square footage of operatories ÷ .275.The blog quotes the formula; the ADA book itself was not checked.
  5. Dental Office Floor PlansGoetze Dental, InPractice blog (Inga Paul), September 18, 2018. Reception seating: usually two chairs per operatory, three per room for practices with many children; a children's area for family practices; Parkcrest Dental's 92-seat reception for 38 operatories; 500 sq ft per operatory as a rule of thumb.A dental dealer's planning advice, not a standard.
  6. The facets of dental office floor plansBuildIt (no author or date shown). Two chairs in the reception area per operatory, three per room for a high volume of children's work; an area for children.A design firm's planning advice, not a standard.
  7. Optimizing workflow with proper office designDrBicuspid (Bruce Johnstone), April 17, 2017. Reception with separate check-in and check-out areas so patients do not wait.
  8. 2010 ADA Standards for Accessible DesignU.S. Access Board. §226.1, dining surfaces (at least 5 percent of seating); §305.3, clear floor space 30 x 48 in (760 x 1220 mm); §304.3.1, turning space 60 in (1525 mm); §403.5.1, walking surfaces 36 in (915 mm); §902.3, dining surface height 28 to 34 in (710 to 865 mm).
