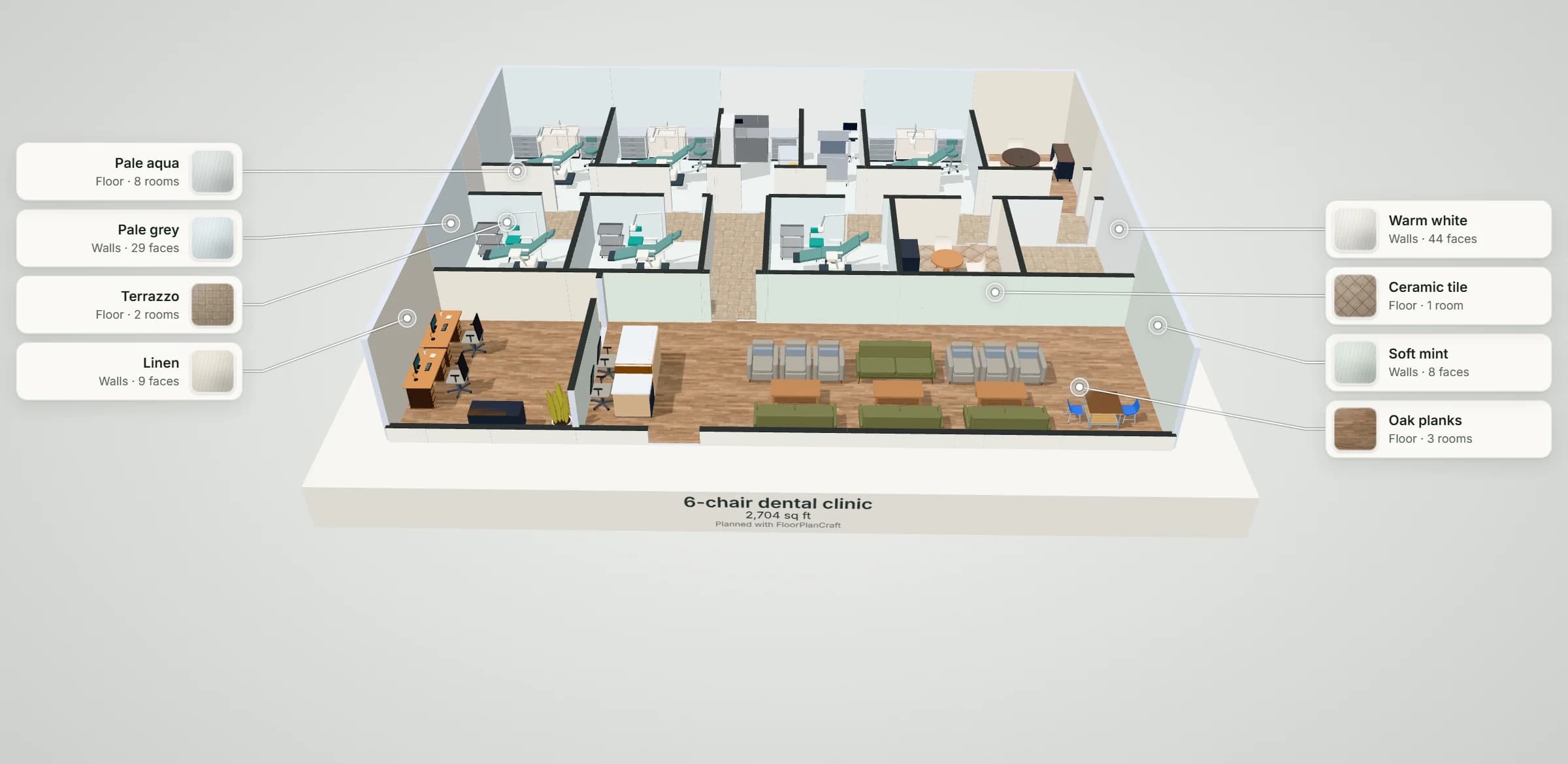

6-chair dental clinic floor plan
59 ft 6 in × 45 ft 6 in (18.12 × 13.86 m) inside the walls: reception and a waiting room for 18, a 5 ft corridor with treatment rooms on both sides, 6 treatment rooms of 11 × 12 ft, sterilization, a sterilization, an X-ray room, a consult room, a staff room and an office and a washroom.
Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.
- 2,704 sq ftinside the walls, 59 ft 6 in × 45 ft 6 in (18.12 × 13.86 m)
- 6dental chairs, one per room
- 132 sq fteach treatment room, 11 × 12 ft
- 18waiting seats, in three sofa groups
- 0Plan check findings: no blocking issue, no clearance warning
THE PLAN
The floor plan, room by room
Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.
| Room | Size inside the walls | Floor |
|---|---|---|
| Treatment room 1 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Treatment room 2 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Sterilization | 8 × 12 ft (2.44 × 3.66 m) | 96 sq ft |
| X-ray | 6 × 12 ft (1.83 × 3.66 m) | 72 sq ft |
| Treatment room 3 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Consult room | 10 × 12 ft (3.05 × 3.66 m) | 120 sq ft |
| Clinic corridor | 59 ft 6 in × 17 ft 6 in (18.12 × 5.33 m) overall, L-shaped | 360 sq ft |
| Treatment room 4 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Treatment room 5 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Treatment room 6 | 11 × 12 ft (3.35 × 3.66 m) | 132 sq ft |
| Staff room | 10 × 12 ft (3.05 × 3.66 m) | 120 sq ft |
| Washroom | 9 × 12 ft (2.74 × 3.66 m) | 108 sq ft |
| Office | 14 × 15 ft (4.27 × 4.57 m) | 210 sq ft |
| Reception & waiting | 45 × 15 ft (13.71 × 4.57 m) | 675 sq ft |
14 doors and 4 windows; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.
| Item | Count |
|---|---|
| Pharmacy Cabinets · Pharmacy Casework Base — Hospital | 14 |
| Kitchen Counter · Sink — Studio | 7 |
| Dental treatment chair | 6 |
| Clinician stool | 6 |
| Clinical & surgeon seating · Dental Operator Stool — Hospital | 6 |
| Medical carts · Suture Treatment — Hospital | 6 |
| Surgical scrub sinks · Ultrasonic Cleaner Sink — Hospital | 1 |
| Pharmacy Cabinets · Tall Glass Medicine Cabinet — Hospital | 1 |
| Waste Receptacles · Sharps Drop Station — Hospital | 1 |
| Privacy screens & shields · Mobile Lead Xray Shield — Hospital | 1 |
| Medical carts · Computer on Wheels — Hospital | 1 |
| Clinical & surgeon seating · Round Stool With Back — Hospital | 1 |
| Conference Tables · Round Huddle Collaboration Table — Workplace | 1 |
| Chair · Shell — Studio | 6 |
| Office Storage · Lateral Filing Credenza — Workplace | 2 |
| Kitchen Counter · Base Run — Studio | 1 |
| Office Storage · 6-Door Digital Staff Locker Bank — Workplace | 1 |
| Round cafe table | 1 |
| Floor toilet | 1 |
| Wash basin | 1 |
| Desk · Executive Pedestal | 2 |
| Chair · Office — Studio | 4 |
| Plants · Snake Plant | 1 |
| Reception & Welcome · Fluted Oak Concierge Desk with Lowered Return — Workplace | 1 |
| Sofa · Mid-Century — Studio | 4 |
| Coffee Table · Rect Wood — Studio | 3 |
| Chair · Armchair — Studio | 6 |
| Cafe Table · Low Lounge | 1 |
| Kids Chair · Stacking | 2 |
ROOM SIZES
How big is a 6-chair dental clinic?
Each treatment room is 11 × 12 ft (3.35 × 3.66 m), 132 sq ft: more than the VA guide's 120 NSF multi-functional room [1] and the DoD criteria's 130 NSF general dentistry room [2]. The waiting room follows dental planners' seats per treatment room [5, 6], and the whole clinic is compared with the ADA rule of thumb [4].
| What | This plan | Published figure |
|---|---|---|
| Treatment room area | 132 sq ft each | VA 120 NSF; DoD 130 NSF |
| Chair movement along the chair | 3,353 mm (132 in) room, chair centred: 510 mm (20 in) at each end | A-dec 511: 2,334 mm (92 in) full range of movement; 500 mm (20 in) beyond it at the head (zone A, our calculator's check) |
| Waiting seats | 18 (3 per treatment room) in three sofa groups, and a kids' corner | Dental planners: 2 per operatory, 3 where families bring children; DoD: 6 seats for the smallest clinics, at 16 NSF each |
| Waiting room | 675 sq ft with an oak counter for two receptionists, one to check in and one to check out, with a lowered section and a knee recess and a clear wheelchair space of 30 × 48 in | 2010 ADA: clear floor space 760 mm (30 in) × 1,220 mm (48 in); DoD: seats in small clusters, room for wheelchairs |
| Whole clinic | 2,704 sq ft (251.2 m²) | ADA rule of thumb: 6 × 132 ÷ 0.275 = 2,880 sq ft |
| Corridor | 5 ft (1,524 mm) wide | 2010 ADA: 1,525 mm (60 in) turning space; 915 mm (36 in) walking surfaces |
Sources: VA [1], DoD [2], A-dec [3], Goetze Dental [5], BuildIt [6], the ADA rule as quoted by the ADA's New Dentist Blog [4], 2010 ADA Standards [8]. These are planning guidance, not a code check. The VA guide puts the head of the chair on the corridor side; this plan lays the chair across the room, its cabinetry and sink on the far wall, so the door's swing stays clear of it.
IN PRACTICE
The 6-chair dental clinic in practice
Six chairs make a busy group practice. Folding the treatment rooms either side of one corridor keeps the farthest of them a short walk from sterilization, where a single row would make the clinic a tube, and puts sterilization and the X-ray room in the middle.
The waiting room holds 18 waiting seats and two kids' chairs in three sofa groups, the most of the five plans, because six chairs see the most patients and companions at once. At 2,704 sq ft the plan is 176 sq ft smaller than the ADA rule of thumb for 6 rooms (2,880 sq ft).
PLAN CHECK
What the planner checked
The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.
| Guidance (and its source) | Items it applies to | In this plan |
|---|---|---|
| Keep 2.33 m (7 ft 8 in) along a dental chair for its full movement; this is one maker's chair and others differ (A-dec 511 guide). | 6 | Kept |
| Leave 305 mm (12 in) of aisle between tables, beyond a 483 mm (19 in) chair line where people sit (IBC, as adopted in Minnesota). | 1 | Kept |
Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.
AT THIS SIZE
What changes at this size
- Six chairs keep the four-chair plan's shape: three treatment rooms behind the corridor and three in front of it, either side of the hall, so no room is more than a few steps from sterilization at the head of the hall.
- The waiting room is 45 × 15 ft, with three sofa groups along its front windows (18 seats), a kids' corner and a wheelchair space; the consult room, the staff room and the washroom are off the corridor.
- Against the 4-chair dental clinic plan: 409 sq ft more inside the walls and 6 more waiting seats.
OTHER SIZES
Compared with the other sizes
| Plan | Inside the walls | Area | ADA rule of thumb | Rooms | Waiting seats |
|---|---|---|---|---|---|
| 1-chair dental clinic | 28 × 30 ft | 839 sq ft | 480 sq ft | 1 treatment, 5 other | 6 |
| 2-chair dental clinic | 31 × 30 ft | 929 sq ft | 960 sq ft | 2 treatment, 4 other | 6 |
| 3-chair dental clinic | 50 ft 6 in × 32 ft | 1,614 sq ft | 1,440 sq ft | 3 treatment, 6 other | 9 |
| 4-chair dental clinic | 50 ft 6 in × 45 ft 6 in | 2,295 sq ft | 1,920 sq ft | 4 treatment, 8 other | 12 |
| 6-chair dental clinic (this plan) | 59 ft 6 in × 45 ft 6 in | 2,704 sq ft | 2,880 sq ft | 6 treatment, 8 other | 18 |
ADA rule of thumb: treatment rooms × their area ÷ .275, the ADA design guide's formula as its New Dentist Blog quotes it. Waiting seats: sofa and armchair seats, a three-seat sofa counting three; three per treatment room, never fewer than six.
QUESTIONS
Questions about this plan
How many square feet is a 6-chair dental clinic?
This plan is 2,704 sq ft inside the walls, 59 ft 6 in × 45 ft 6 in: 6 treatment rooms of 132 sq ft, sterilization, a sterilization, an X-ray room, a consult room, a staff room and an office, a corridor, reception and waiting, and a washroom. The ADA rule of thumb (treatment rooms × their area ÷ .275) gives 2,880 sq ft for the same rooms. [4]
How many waiting room seats does a 6-chair dental clinic need?
Dental planners suggest about 2 reception seats per operatory, and 3 where families bring children; the DoD criteria start every clinic at 6. This plan seats 18 waiting seats and two kids' chairs (675 sq ft with the counter), plus a clear 30 × 48 in wheelchair space. How busy your schedule is decides the right number. [5, 6, 2, 8]
What size are the treatment rooms in this 6-chair dental clinic?
Each is 11 × 12 ft (132 sq ft), more than the VA's 120 NSF room and the DoD's 130 NSF. The chair lies along the 11 ft side: centred, its 2,334 mm full movement leaves 510 mm at each end; cabinetry and a sink run along the far wall, with the clinician's and the assistant's stools either side of the chair. [1, 2, 3]
Is one sterilization room enough for 6 dental chairs?
This plan has one, 8 × 12 ft (96 sq ft), in the middle of the corridor at the head of the hall, so every treatment room is a few steps away. Your instrument workflow, how many staff reprocess at once and local infection-control rules decide whether one is enough.
