15 × 15 home gym layout

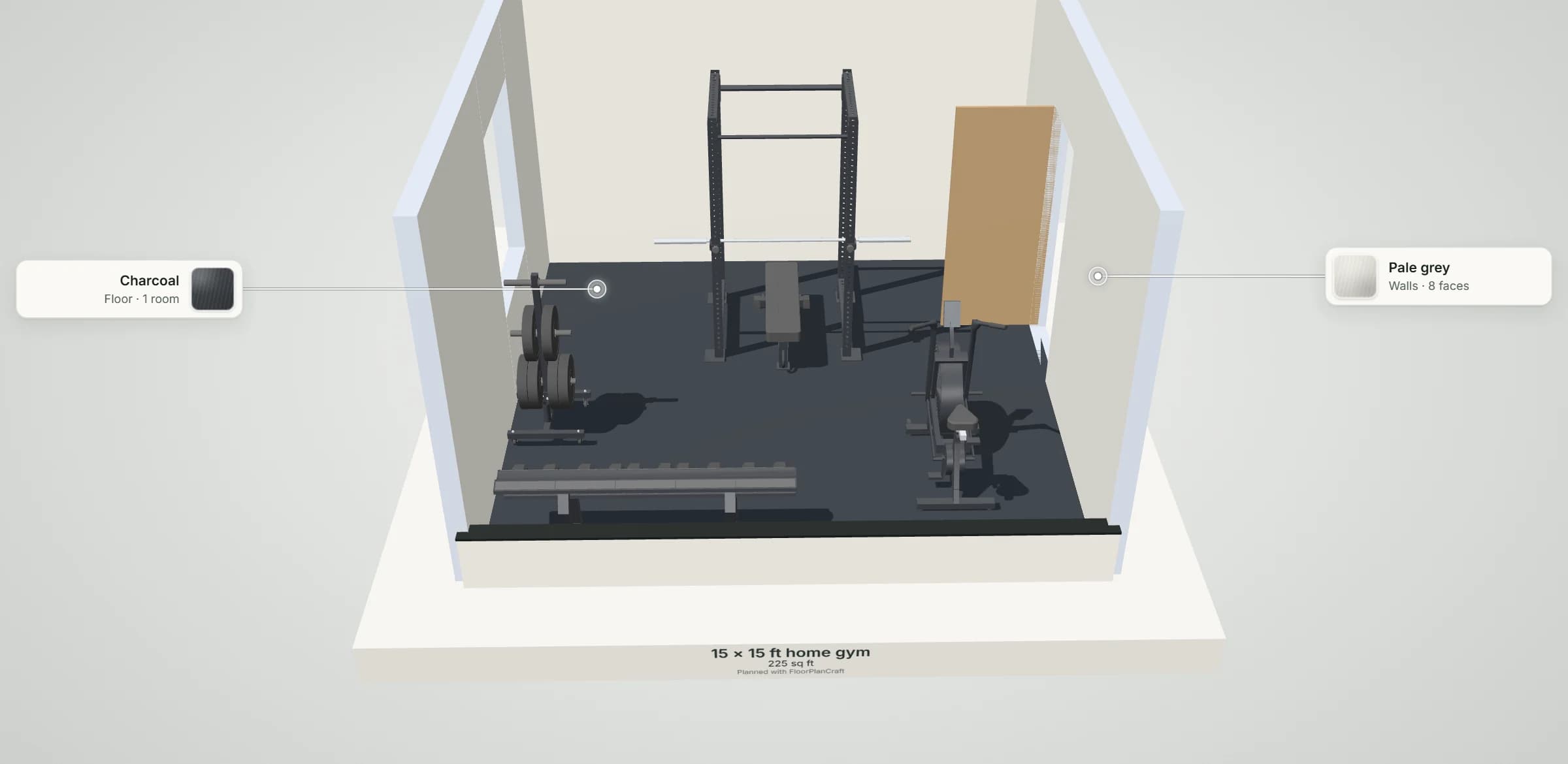

15 × 15 ft (4.57 × 4.57 m) inside the walls, with power rack, flat bench, air bike, dumbbell rack and plate tree: real products at their published sizes, each machine's clear area kept off the walls and the other equipment.
Free to try, no sign-up. A conceptual layout to edit, not a certified or code-checked plan.
- 225 sq ftinside the walls, 15 × 15 ft (4.57 × 4.57 m)
- 5pieces of equipment, 3 with a clear area
- 1,186 mmof floor beyond the 2.20 m bar's tighter end
- 600 mmkept clear around the rack and bench
- 0Plan check findings: no blocking issue, no clearance warning
THE PLAN
The floor plan, room by room
Measured inside the walls. The plan opens in the planner exactly as drawn here: move, add or remove anything.
| Room | Size inside the walls | Floor |
|---|---|---|
| Home gym | 15 × 15 ft (4.57 × 4.57 m) | 225 sq ft |
1 door and 1 window; walls 150 mm thick. The planner's own room labels measure to the walls' centre lines, so they read a little more.
| Item | Count |
|---|---|
| TITAN Series Power Rack with J-Hooks and Bar | 1 |
| FB-5000 Competition Flat Bench | 1 |
| Echo Bike V3.0 | 1 |
| Commercial Dumbbell Rack | 1 |
| Portable Weight Plate and Barbell Storage Tree | 1 |
EQUIPMENT
What fits in a 15 × 15 ft home gym?
Every machine here is a real product at its published size [3, 4, 5, 6, 7]. A treadmill keeps 2.00 m clear behind its deck and 600 mm beside it [1]; the rack, the benches and the bike keep FloorPlanCraft's default 600 mm all round, the operating area Life Fitness gives its own rower [2]; storage keeps none.
| Equipment | Kind | Size | Clear area |
|---|---|---|---|
| Titan Fitness TITAN Series Power Rack with J-Hooks and Bar | Power rack | 2,200 × 1,194 mm | 600 mm all round |
| REP Fitness FB-5000 Competition Flat Bench | Flat bench | 533 × 1,283 mm | 600 mm all round |
| Rogue Fitness Echo Bike V3.0 | Air bike | 749 × 1,397 mm | 600 mm all round |
| REP Fitness Commercial Dumbbell Rack | Dumbbell rack | 2,140 × 593 mm | none (storage) |
| Titan Fitness Portable Weight Plate and Barbell Storage Tree | Plate tree | 622 × 622 mm | none (storage) |
The rack carries a pair of TITAN roller J-hooks with the 2.20 m REP Alpine bar [8] on them, so its size and clear area run to the bar's ends; the bar has 1,186 mm (47 in) to the left wall and 1,186 mm (47 in) to the right wall. The flat bench stands in the rack's open middle, as in the garage home gym template, and the dumbbell rack and the plate tree are shown loaded.
| Machine | Needs (with clear area) | In this room |
|---|---|---|
| Life Fitness Symbio Runner (treadmill) | 2,127 × 4,155 mm | Fits the empty room, not beside what is placed |
| Life Fitness Row HX Trainer (rower) | 1,720 × 3,330 mm | Fits the empty room, not beside what is placed |
| REP Fitness AB-5200 2.0 Adjustable Bench (adjustable bench) | 1,855 × 2,663 mm | Fits the empty room, not beside what is placed |
NSCA guidance for strength facilities asks 12 ft to 14 ft of ceiling [9]; this plan does not check the ceiling.
IN PRACTICE
The 15 × 15 ft home gym in practice
15 × 15 ft is the smallest of these rooms where cardio fits beside the strength station: the rack stays centred on the back wall with the J-hooks and the 2.20 m bar on the rack, and the air bike stands in the front right corner, facing the rack across the room, with its own clear area: 1,949 mm (77 in) × 2,597 mm (102 in). The bar's ends have 1,186 mm (47 in) to the left wall and 1,186 mm (47 in) to the right wall.
To make that room the dumbbell rack moves to the front wall and the plate tree to the left wall, by the bar's end; the door on the right wall opens onto the floor between the rack and the bike. Not in this plan: a treadmill, a rower and an adjustable bench; the garage plans take them.
PLAN CHECK
What the planner checked
The planner's Plan check ran on this plan as it ships: walls, doors and their approaches, a way from the entrance to every room, items inside their rooms and clear of each other, and the clearance guidance below. It found nothing blocking and no guidance warnings.
| Guidance (and its source) | Items it applies to | In this plan |
|---|---|---|
| Keep 0.6 m (2 ft) clear around training equipment to get on, off and past it (ISO 20957-1, as quoted by Life Fitness). | 3 | Kept |
Plan check is guidance for an early layout, not a code, accessibility or safety review. Local codes, the equipment you buy and a qualified professional decide the final plan.
AT THIS SIZE
What changes at this size
- Against the 12 × 12 ft home gym: 81 sq ft more floor and 1 more piece of equipment (adds an air bike).
- The rack's clear area takes 3.40 m × 2.39 m of floor in every size; what changes is what fits beside and in front of it.
- Bar loading: 1,186 mm (47 in) to the left wall and 1,186 mm (47 in) to the right wall, at least the 600 mm (24 in) the plans aim for.
OTHER SIZES
Compared with the other sizes
| Plan | Room | Area | Pieces | Bar's tighter end | Equipment |
|---|---|---|---|---|---|
| 10 × 10 ft home gym | 10 × 10 ft | 100 sq ft | 3 | 424 mm | power rack, flat bench and plate tree |
| 12 × 12 ft home gym | 12 × 12 ft | 144 sq ft | 4 | 729 mm | power rack, flat bench, dumbbell rack and plate tree |
| 15 × 15 ft home gym (this plan) | 15 × 15 ft | 225 sq ft | 5 | 1,186 mm | power rack, flat bench, air bike, dumbbell rack and plate tree |
| 1-car garage gym | 12 × 20 ft | 240 sq ft | 6 | 605 mm | power rack, flat bench, plate tree, dumbbell rack, air bike and rower |
| 2-car garage gym | 20 × 20 ft | 400 sq ft | 8 | 800 mm | power rack, flat bench, plate tree, dumbbell rack, adjustable bench, air bike, rower and treadmill |
Bar's tighter end: the floor beyond the end of a 2.20 m bar centred on the rack, to the nearest wall or item along it.
QUESTIONS
Questions about this plan
Is a 15 × 15 ft room big enough for a home gym?
This plan's 15 × 15 ft room (225 sq ft (20.9 m²)) holds a power rack, a flat bench, an air bike, a dumbbell rack and a plate tree with every clear area kept. Not in it: treadmill, rower and adjustable bench, which need 2,127 × 4,155 mm, 1,720 × 3,330 mm and 1,855 × 2,663 mm with their clear areas. [1]
Which cardio machine fits a 15 × 15 ft home gym?
In this plan, the air bike: with its 600 mm clear area it needs 1,949 mm (77 in) × 2,597 mm (102 in), and it stands in the front right corner, facing the rack across the room. Not in this plan: the treadmill (2,127 × 4,155 mm with its clear area), the rower (1,720 × 3,330 mm with its clear area) and the adjustable bench (1,855 × 2,663 mm with its clear area). [5, 1]
References
Sources of the figures this page compares the plan with.
- Symbio Runner assembly instructions and owner's manual, 1022782-0001 REV AFLife Fitness (Cybex knowledge base). Safety Clearances, p. 12 (EN ISO 20957: 2 m behind, at least as wide as the unit; ASTM F2115-12: 0.5 m each side and 2 m behind); Treadmill Dimensions, p. 47 (36.5 × 84.85 × 65.73 in with console).The maker's summary of ASTM F2115 and EN ISO 20957; the standards themselves were not read.
- Row HX Trainer owner's manual, 1002735-0001Life Fitness. Specifications, p. 6: minimum safe operating surface area 131.09 × 67.71 in (333 × 172 cm); a live area at least 23.62 in (60 cm) larger than the training area on the sides it is used from; dimensions 83.85 × 20.47 × 22.04 in (213 × 52 × 56 cm).
- TITAN Series Power Rack, 90 in × 36 in (SKU 401668)Titan Fitness. Specifications: overall footprint 47 × 55.125 in, overall height 90 in, inside width 42 in.Footprint re-read in the page's specification tab on 2026-10-17. An unlabelled image caption on other variants lists 90, 53 and 55.125 in; the page uses the specification tab.
- FB-5000 Competition Flat Bench (SKU FB-5002-MBLK)REP Fitness. Tech specs: bench width 21 in, length 50.5 in, height 16.9 in.
- Rogue Echo Bike V3.0 (SKU IP0895)Rogue Fitness. Specifications: width 29.5 in at the handles, length 55 in, height 52.25 in.Rogue's assembly instructions give no clearance figure; the planner uses its 600 mm default.
- Commercial Dumbbell Rack, two-tier hex (SKU WS-6240)REP Fitness. Tech specs, 2-tier hex: length 84.24 in (2139.6 mm), depth 23.33 in (592.6 mm), height 31.52 in (800.7 mm).
- Portable Weight Plate and Barbell Storage Tree (SKU 401919)Titan Fitness. Specifications: overall width 24.5 in, length 24.5 in, height 57.625 in.
- Alpine Weightlifting Bar, 20 kg (SKU BB-5120-HC)REP Fitness. Tech specs: length 86.6 in, end to end.
- Essentials of Tactical Strength and Conditioning, exam prep module 5.0 (2013)National Strength and Conditioning Association. Facility guidelines: ceiling height 12 to 14 ft of clearance, passageways 36 in, hallways 60 in; equipment spacing: a bench press example with 3 ft of safety space on each side.A course module rather than a standard; its 3 ft on each side is a stricter reading than the 2017 Standards' 3 ft in all.
